Product Class:OCXO

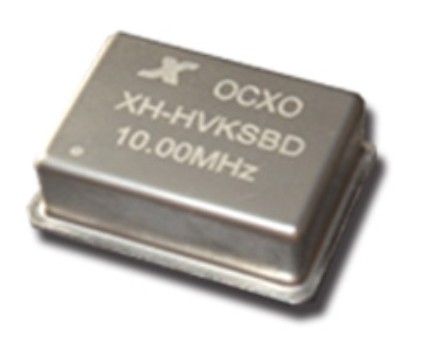

OCXO
OCXO
  • OCXO
  • OCXO
    This type of crystal temperature stability of the bath solution uses technology, the crystal placed in a thermostatic chamber, the operating point by setting the temperature, the tank maintain a constant temperature in a temperature range from the outside, to stabilize the output frequency effect. Frequency-temperature characteristics in all types of crystal is the best, because the circuit design precision, and its short-term stability and phase noise are better. Mainly used for base stations, communications, time and frequency reference, broadcast, instrumentation, satellite communications and military equipment, and other fields. According to user needs, the type with a voltage controlled crystal oscillator can pin.

OCXO Specifications and parameter table

Model Package Freq Range Wave &Supply voltage Aging Details Download
H5050A 50.8×50.8×15.0mm 5-50MHz

HCMOS/Sinewave

5.0V/12.0V

≤±0.2ppb/day

≤±0.02ppm/year


H5040A 51.0×41.0×15.0mm 5-50MHz

HCMOS/Sinewave

5.0V/12.0V

≤±0.2ppb/day

≤±0.02ppm/year


H3627A 36.0×27.0×12.7mm 5-50MHz

HCMOS/Sinewave

3.3V/5.0V/12.0V

≤±0.5ppb/day

≤±0.05ppm/year


H3627B 36.0×27.0×12.7mm 80-125M

Sinewave

5.0V /12.0V

≤±0.5ppb/day

≤±0.05ppm/year


H2525A 25.4×25.4×12.7mm 5-50MHz

HCMOS/Sinewave

3.3V/5.0V/12.0V

≤±0.5ppb/day

≤±0.05ppm/year


H2525B 25.4×22.0×12.0mm 5-50MHz

HCMOS/Sinewave

3.3V /5.0V/12.0V

≤±0.5ppb/day

≤±0.05ppm/year


H2525D 25.4×25.4×12.7mm 80-125M

HCMOS/Sinewave

5.0V/12.0V

≤±0.5ppb/day

≤±0.05ppm/year


H2020A 20.32×20.32×10.0mm 5-50MHz

HCMOS/Sinewave

3.3V/5.0V/12.0V

≤±0.5ppb/day

≤±0.05ppm/year


H2515A 25.0×15.0×10.0mm 5-50MHz

HCMOS/Sinewave

3.3V/5.0V

≤±0.5ppb/day

≤±0.05ppm/year


H2013A 20.32×12.7×10.0mm 5-50MHz

HCMOS/Sinewave

3.3V/5.0V

≤±5.0ppb/day

≤±0.5ppm/year


H1409A 14.0×9.0×7.0mm 5-50MHz

HCMOS/Sinewave

3.3V/5.0V

≤±5.0ppb/day

≤±0.5ppm/year
